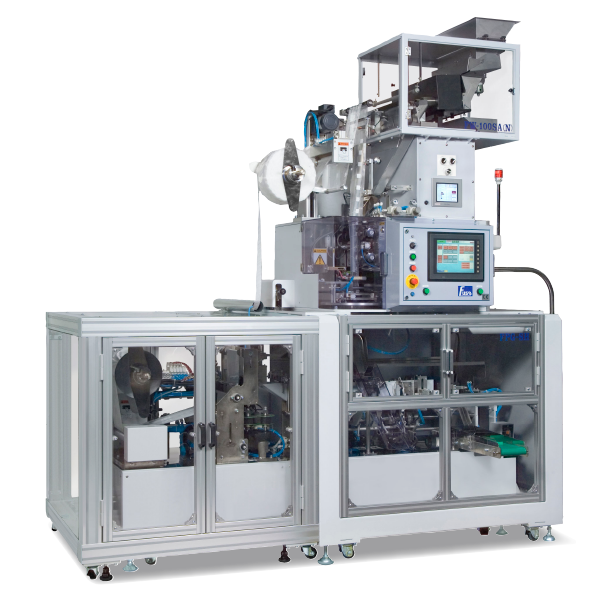

带独立外包装的三角茶包

Inner Bag Packaging Section
Packaging Method
3-Side Ultrasonic Sealing and Cutting
Measurement Method
Standard: Slide Doser Weighing
Option: Load-Cell Weigher, Auger Filler
Packaging Materials
Nylon, Non-Woven Fabric, and any suitable filters for ultrasonic sealing
Filter Width
120–180 mm

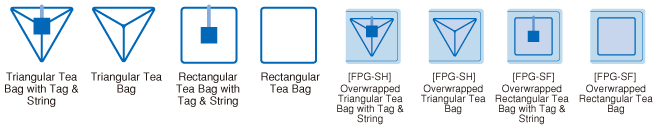

Bag Size
Triangular: 50-80 mm (each edge)
Rectangular : 40-80(W) x 50-80(L)mm
Overwrapping Section
Packaging Method
3-Side Heat Sealing
Packaging Materials
Laminated Film (PP, PE , etc.)
Film Width
160–200 mm
Overwrap Size
80–100 (W) x 90–115 (L) mm
Capacity
Max. 60 bags/min.
Dimensions
2,350 (W) x 1,420 (D) x 2,450 (H) mm
Weight
1,080 kg
Power Supply *
3-Phase / 200 V / 4.0 kW
Compressed Air *
650 L/min. (6 bar)
CE Marking **
Optional
* Transformer for local voltage and dried compressed air to be prepared by the customer.
** Fail-safe design based on CE directive.
Inner Bag Packaging Section
Packaging Method
3-Side Ultrasonic Sealing and Cutting
Measurement Method
Standard: Slide Doser Weighing
Option: Load-Cell Weigher, Auger Filler
Packaging Materials
Nylon, Non-Woven Fabric, and any suitable filters for ultrasonic sealing
Filter Width
120–200 mm
Bag Size
Rectangular: 45–65 (W) x 60–90 (L) mm
Drip bag: 90 x 65–83 mm
Overwrapping Section
Packaging Method
3-Side Heat Sealing
Packaging Materials
Laminated Film (PP, PE, etc.)
Film Width
140–220 mm
Overwrap Size
Overwrap (for Rectangular): 70–100 (W) x 85–120(L) mm
Overwrap (for Drip Bag): 100–110 (W) x 120–135 (L) mm
Capacity
Max. 50bags/min.
Dimensions
1,340 (W) x 1,140 (D) x 2,915 (H) mm
Weight
880 kg
Power Supply *
3-Phase / 200 V / 2.2 kW
Compressed Air *
320 L/min. (6 bar)
CE Marking **
Optional
* Transformer for local voltage and dried compressed air to be prepared by the customer.
** Fail-safe design based on CE directive.
